1. EXCELLENT MOBILITY
- JUST DRIVE-IN,
ASSEMBLE THEN PRODUCE.
- SINGLE TRAILER FOR
MUSTANG-500, 800
- THREE TRAILERS FOR MUSTANG-1000 AND
ABOVE
2. SIMPLE & QUICK ASSEMBLE
- NO WELDING, ALL JOIN PARTS ARE FLANGE BOLTING AND
CLAMPING TYPE
- ALL CABLES ARE PRE-LAID WITH PLUG
CONNECTOR TYPE
- NO HEAVY ERECTION TOOLS REQUIRED
3. PERFECT PERFORMANCE
- EACH &
ALL UNIT CAPACITIES ARE BIG ENOUGH TO DRY, STORE AND PRODUCE
- MATERIAL FLOW-SEQUENCES ARE SAME AS STATIONARY PLANT
FLOW
-
HENCE, MUSTANG SHOWS FULL PERFORMANCE AS OFFERED CAPACITY
|
 |
 |
|
|
[SPECIAL FEATURES]

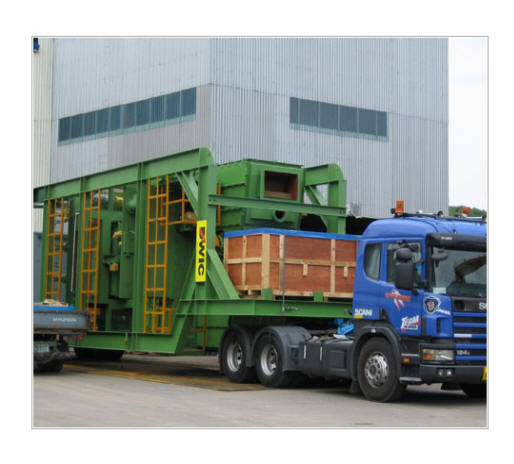

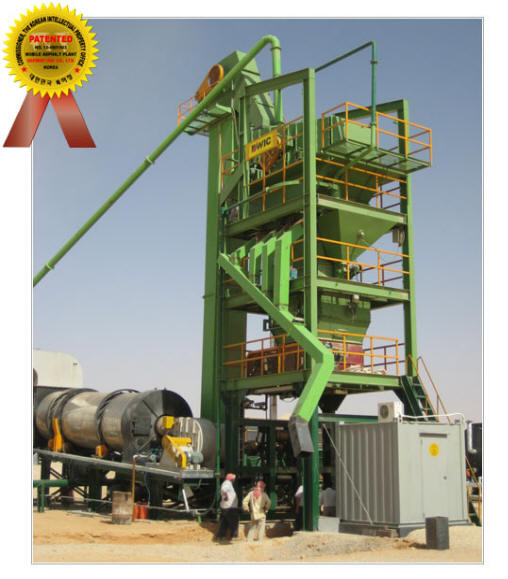

1. MAIN
UNIT
- CONSISTED VIBRATING SCREEN, HOT BIN,
AGGREGATE & BITUMEN WEIGHING AND MIXER ON WHEEL MOUNTED TRAILER

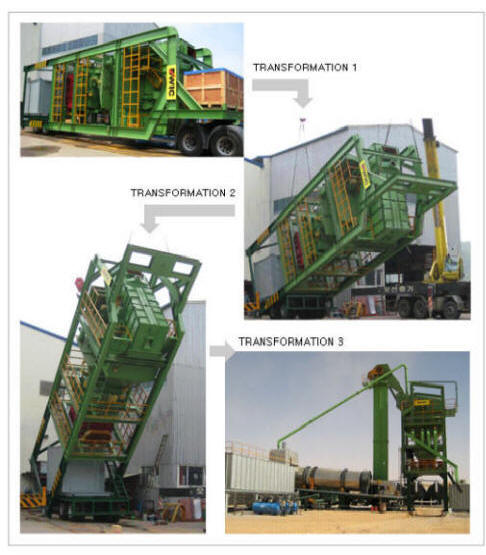

- SINGLE CHASSIS LIFTING-UP FOR ERECTION AND LIFTING-DOWN
FOR DISASSEMBLING
- ALL CABLES, AIR & BITUMEN PIPES ARE
PRE-LAID
- HINGE TYPE WIDE WALK WAY AND FIXED STAIR WAY
SECURE EASY MAINTENANCE & QUICK ACCESS UPTO TOP OF THE PLANT
|
 |

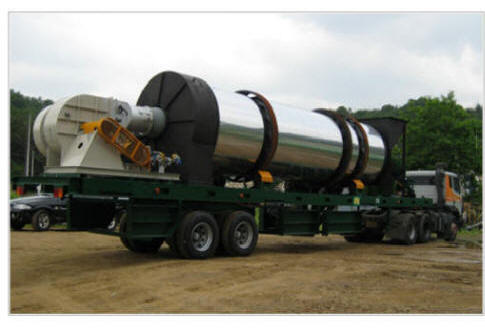

2. AGGREGATE HEATING UNIT
- CONSISTED DRYER, BURNER & HOT ELEVATOR ON WHEEL MOUNTED
TRAILER
- SIMPLE LIFTING UP AND BOLT JOINTING FOR
ASSEMBLE HOT ELEVATOR
- ALL ACCESSORIES AND ATTACHMENTS
ARE PRE-ASSEMBLED
|
 |
3. DUST COLLECTING UNIT
- CONSISTED BAG FILTER, DRY SKIMMER, EXHAUST FAN ON THE
25TON CAPACITY WHEEL MOUNTED TRAILER WITH SCREW JACK FOR ERECTION & FIXING
SUPPORT
- SCREW FROM DRY SKIMMER TO HOT ELEVATOR FOR
RECYCLING RECLAIMED COARSE DUST
- AIR BLOWER FROM BAG
FILTER TO DUST SILO FOR RECLAIMED FINE DUST & SCREW FOR
REMOVAL EXCESS DUST OUT
|
 |
4. AGGREGATE SUPPLYING UNIT
-
CONSISTED COLD BINS, BELT FEEDER & CONVEYOR (FOLDING TYPE)
- SELF STANDING DESIGN ON THE GROUND
- OPTIONAL WHEEL
MOUNTED TRAILER
|
|
|
5. OTHERS
-
BITUMEN STORAGE TANK :
SKID TYPE SELF STANDING / WHEEL MOUNTED TRAILER
- FUEL TANK : SKID TYPE SELF STANDING / WHEEL MOUNTED
TRAILER
- HOT OIL HEATER : SELF STANDING TYPE / WHEEL
MOUNTED TRAILER
- FILLER SUPPLY HOPPER : SELF STANDING
SILO TYPE WITH SCREW CONVEYOR FOR SUPPLYING & WEIGHING
|
 |
|
MODEL |
CAPACITY |
|
MUSTANG - 500 |
40T/H |
|
MUSTANG - 800 |
64T/H |
|
MUSTANG - 1000 |
80T/H |
|
MUSTANG - 1300 |
104T/H |
|
MUSTANG - 1600 |
128T/H |
|
MUSTANG - 2000 |
160T/H |
|
